EEC-39RFTS eddy current instrument with
remote field technology option is a new
generation eddy current instrument with
advanced digital electron, remote-field eddy
current, engineering endoscopes and
microelectronic, detecting techniques. It can
efficiently inspect both inner and outer defects of
ferromagnetic tube in real time without the effect
of lift-off, conductivity and skin effect, and pick up
the signal of eddy current and video frequency
synchronously. EEC-39RFTS with full-digital,
multi-frequency, multi-channel is a versatile
system offering a comprehensive array of
electromagnetic testing techniques available on a
single instrument. EEC-39RFS can be used to
inspect both non-ferromagnetic and
ferromagnetic tubing materials for flaws such as
pitting corrosion vibrations wear steam erosion
and crack.
EEC-39RFTS combines the advanced
testing capabilities of the EEC-39RFT with a
highly sensitive remote field technology option,
makes the instrument an ideal solution for a
broad range of tubing applications in the
petroleum chemical and power generation
industries. Where inspection of both
non-ferromagnetic and ferromagnetic materials is
required. In contrast to other ferromagnetic tubing
inspection, the EEC-39RFTS provides not only a
more complete --100% coverage with inner and
outer surface discontinuity detection, but also
thickness measurement -- in a fraction of the
time. |
|
Features And Specifications |
· |
Frequencies & Channels |
|
8 eddy current frequencies |
|
Frequency range from 5Hz to 5MHz (Remote-field frequencies from 5Hz to 5KHz) |
|
128 independently-selectable channels |
|
Three signal mixing capabilities(Auto-mixing ) |
|
Gain Adjustment |
· |
Adjustable gain from 0dB to 90dB in 0.5dB
steps. Gain magnify:1~100 times. |
· |
Phase |
|
359 degrees phase shift can be varied in
steps of 1 degree, the impedance plane can be
rotated during modification for ease of operation. |
· |

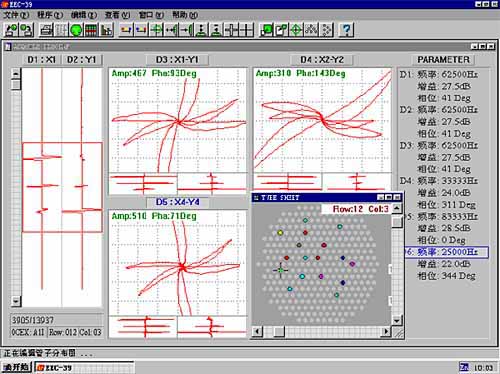

Colored Real-Time Display |
|
Phase and amplitude scanning displays |
|
Multi-displaying mode for selection, 8-trace of impedance plane |
|
Selectable background for polar and right coordinate systems |
|
Delay erase display mode |
|
All instrument settings are shown on the display |
· |
Alarm and others |
|
No-equal phase/amplitude alarming area |
|
Store various testing programs and testing data |
|
Auto phase/amplitude display the strip curve of the cracks'deep |
|
Digital filters/ Fast electronic balancing/ Adjustable sample rate. |
|
Automatic/manual amplitude and phase measure, extend and replay the signal |
|
Selectable of sound pulse testing mode and date analyzing system |
|
With the functions of measuring cracks and testing the conductivity of material. |
· |
Inputs |
|
Four connectors are provided for differential,
absolute and reflection type probes. The
connectors are designed to operate with most
manufacturer’s probes. |
|
Other connects are provided for rotating probe. |
· |
Outputs |
|
Eight analog outputs |
|
Print data to Epson series |
· |
Memory Store & Recall |
|
Stores test setups |
|
Stores screen images |
· |
Easy to learn & Easy To Operate |
· |
All parameter settings and configurations are done from the keyboard and can be individually
stored and retrieved from hard or flexible disk. |
· |
Friendly controls are directly accessible |
|
|
|
|
|
|
|
|
