EUT-101A/B/C Powerful ultrasonic flaw detector
EUT101A has hefty penetrating power and high sensitivity for heavy casting and forging and welding of thick wall,And thick honeycombing parts of the aerospace industry.
EUT 101B/EUT 101C has delicate high resolution for fine defection of near zone or far zone in aircraft parts and auto parts.

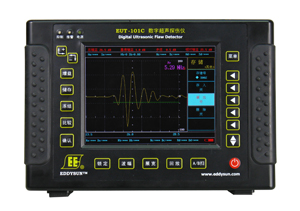

EUT 101C has TFT screen of 640x480,bringing optimized effect for reading & measurement. |
|
| |
| EUT-101A hefty penetrating power ultrasonic flaw detector |
| · |
Transmitter Pulse Sharp Wave Pulser, Transmitter Pulse Voltage: 200～1200V, continuously |
| · |
Pulse Repetition Frequency (PRF) 25Hz～5 KHz, auto and manual adjustment modes optional |
| · |
Range: 0.0～9999mm longitudinal wave at steel velocity. Range continuously variable with minimum 3.0mm increments |
| · |
Frequency: 0.5～20MHz. Broadband / narrowband optional |
| · |
Gain: 0.0～110.0dB. Steps as 0.5, 2.0, 6.0 dB |
| · |
Surplus Sensitivity: ≥72dB (200mm φ2 flat bottom hole) |
| · |
Measurement Resolution ratio: 0.01mm |
| · |
Power Supply: Large-capacity Li Battery, no memory effect; Battery Operating time: More than 6 hours, or AC 220V |
| · |
There are four alarm gates: A, B, C and D. An alarm threshold can be set, and when the echo is higher or lower than the threshold the system will alarm, so as to achieve multi-position and multi-method auto alarm. |
| · |
Strong Performance: High resolution and penetration, achieving precise flaw detection from thin plates to large forged pieces.. |
|
| |
| EUT-101B delicate high resolution ultrasonic flaw detector |
| · |
Transmitter Pulse Sharp Wave Pulser, Transmitter Pulse Voltage: ≥500V, tr≤15ns |
| · |
Pulse Repetition Frequency (PRF) 25～5 KHz, auto and manual adjustment modes optional |
| · |
Range: 0.0～9999mm longitudinal wave at steel velocity. Range continuously variable with minimum 3.0mm increments |
| · |
Frequency: 0.5～15MHz. Broadband / narrowband optional |
| · |
Gain: 0.0～110.0dB. Steps as 0.5, 2.0, 6.0 dB |
| · |
Surplus Sensitivity: ≥72dB (200mm φ2 flat bottom hole) |
| · |
Measurement Resolution ratio 0.01mm |
| · |
Power Supply: Large-capacity Li Battery, no memory effect; Battery Operating time: More than 6 Hours, or AC
|
| · |
The function and scope of application:There are DAC, four alarm gates,Tracking first echo and attenuation of bottom echo. |
| · |
USB port for saving system stored data and echoes to a USB disk, as well as easy printout of test reports. |
| · |
Strong Performance: achieving precise flaw detection for fine defection of near zone or far zone in aircraft parts and auto parts |
|
|
 |
 |
 |
|
 |
|
